Extraction of Objects In Images and Videos Using 5 Lines of Code


PixelLib is a library created for easy integration of image and video segmentation in real life applications. Learn to use PixelLib to extract objects In images and videos with minimal code.



By Ayoola Olafenwa, Independent AI Researcher



Original Photo by Joanna Nix-Walkup on Unsplash



Computer vision is the medium through which computers see and identify objects. The goal of computer vision is to make it possible for computers to analyze objects in images and videos, to solve different vision problems. Object Segmentation has paved way for convenient analysis of objects in images and videos, contributing immensely to different fields, such as medical, vision in self driving cars and background editing in images and videos.

PixelLib is a library created for easy integration of image and video segmentation in real life applications. PixelLib has employed the powerful techniques of object segmentation to make computer vision accessible to everyone. I am excited to announce that the new version of PixelLib has made analysis of objects in computer vision easier than ever. PixelLib uses segmentation techniques to implement objects’ extraction in images and videos using five lines of code.



Install PixelLib and its dependencies:


Install Tensorflow with:(PixelLib supports tensorflow 2.0 and above)

pip3 install tensorflow


Install PixelLib with

pip3 install pixellib


If installed, upgrade to the latest version using:

pip3 install pixellib — upgrade




Object Extraction in Images Using Mask R-CNN COCO Model



import pixellibfrom pixellib.instance import instance_segmentationsegment_image=instance_segmentation()
segment_image.load_model(“mask_rcnn_coco.h5”)


Line 1–4: We imported the PixelLib package, created an instance of the instance segmentation class and loaded the pretrained Coco model. Download the model from here.

segment_image.segmentImage("image_path",
    extract_segmented_objects=True,
    save_extracted_objects=True,
    show_bboxes=True,
    output_image_name="output.jpg")


This is the final line of the code, where we called the function segmentImage with the following parameters:

  • image_path: This is the path to the image to be segmented.
  • extract_segmented_objects: This is the parameter that tells the function to extract the objects segmented in the image and it is set to true.
  • save_extracted_objects: This is an optional parameter for saving the extracted segmented objects.
  • show_bboxes: This is the parameter that shows segmented objects with bounding boxes. If it is set to false, it shows only the segmentation masks.
  • output_image_name: This is the path to save the output image.

Sample image:



Source: By Paul Krueger (CCO)



Full code for object extraction:




Output Image:






Extracted Objects from the image:






Note: All the objects in the image are extracted and saved individually as an image. I displayed just few of them.



Segmentation of Specific Classes in Coco Model


We make use of a pretrained Mask R-CNN coco model to perform image segmentation. The coco model supports 80 classes of objects, but in some applications we may not want to segment all the objects it supports. Therefore, PixelLib has made it possible to filter unused detections and segment specific classes.

Modified code for Segmenting Specific Classes

target_classes = segment_image.select_target_classes(person=True)


It is still the same code except we called a new function select_target_classes, to filter unused detections and segment only our target class which is person.

segment_image.segmentImage("sample.jpg", segment_target_classes=target_classes, extract_segmented_objects=True,save_extracted_objects=True, show_bboxes=True,  output_image_name="output.jpg")


In the segmentImage function we introduced a new parameter called segment_target_classes, to perform segmentation on the target class called from the select_target_classes function.





Wow! we were able to detect only the people in this image.

What of if we are only interested in detecting the means of transport of the people available in this picture?

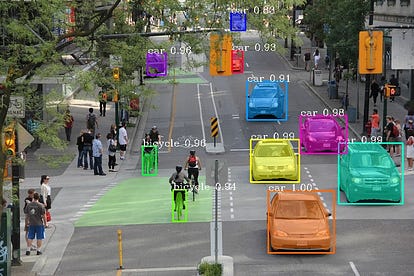

target_classes = segment_image.select_target_classes(car=True, bicycle = True)


We changed the target class from person to car and bicycle.





Beautiful Result! We detected only the bicycles and the cars available in this picture.

Note: If you filter coco model detections, it is the objects of the target class segmented in the image that would be extracted.



Object Extraction in Videos Using Coco Model


PixelLib supports the extraction of segmented objects in videos and camera feeds.


Sample video:




segment_video.process_video("sample.mp4", show_bboxes=True,
   extract_segmented_objects=True,
   save_extracted_objects=True,
   frames_per_second= 5,
   output_video_name="output.mp4")


It is still the same code, except we changed the function from segmentImage to process_video. It takes the following parameters:

  • show_bboxes: This is the parameter that shows segmented objects with bounding boxes. If it is set to false, it shows only the segmentation masks.
  • frames_per_second: This is the parameter that sets the number of frames per second for the saved video file. In this case it is set to 5, i.e the saved video file would have 5 frames per second.
  • extract_segmented_objects: This is the parameter that tells the function to extract the objects segmented in the image and it is set to true.
  • save_extracted_objects: This is an optional parameter for saving the extracted segmented objects.
  • output_video_name: This is the name of the saved segmented video.


Output video:





Extracted objects from the video:





Note: All the objects in the video are extracted and saved individually as an image. I displayed just some of them.

Segmentation of Specific Classes in Videos

PixelLib makes it possible to filter unused detections and segment specific classes in videos and camera feeds.

target_classes = segment_video.select_target_classes(person=True)

segment_video.process_video("sample.mp4",
   show_bboxes=True,
   segment_target_classes= target_classes,
   extract_segmented_objects=True,
   save_extracted_objects=True,
   frames_per_second= 5,
   output_video_name="output.mp4")




The target class for detection is set to person and we were able to segment only the people in the video.

target_classes = segment_video.select_target_classes(car = True)

segment_video.process_video("sample.mp4",
   show_bboxes=True,
   segment_target_classes= target_classes,
   extract_segmented_objects=True,
   save_extracted_objects=True,
   frames_per_second= 5,
   output_video_name="output.mp4")







The target class for segmentation is set to car and we were able to segment only the cars in the video.


Full code for Segmenting Specific Classes and Object Extraction in Videos


Full code for Segmenting Specific Classes and Object Extraction in Camera Feeds

import cv2 capture = cv2.VideoCapture(0)


We imported cv2 and included the code to capture camera’s frames.

segment_camera.process_camera(capture,
   show_bboxes=True,
   show_frames=True,
   extract_segmented_objects=True,
   save_extracted_objects=True,
   frame_name="frame",
   frames_per_second=5,
   output_video_name="output.mp4")


In the code for performing segmentation, we replaced the video’s filepath to capture, i.e we are processing a stream of frames captured by the camera. We added extra parameters for the purpose of showing the camera’s frames:

  • show_frames: This is the parameter that handles the showing of segmented camera’s frames.
  • frame_name: This is the name given to the shown camera’s frame.



Object Extraction in Images Using Custom Models Trained with PixelLib


PixelLib supports training of a custom segmentation model and it is possible to extract objects segmented with a custom model.

import pixellib
from pixellib.instance import custom_segmentation

segment_image = custom_segmentation()

segment_image.inferConfig(num_classes=2,
   class_names=['BG', 'butterfly', 'squirrel'])

segment_image.load_model("Nature_model_resnet101.h5")


Line 1–4: We imported the PixelLib package, created an instance of the custom segmentation class, called the inference configuration function (inferConfig) and loaded the custom model. Download the custom model from here. The custom model supports two classes which are as follows:

  • Butterfly
  • Squirrel
segment_image.segmentImage("image_path",
   extract_segmented_objects=True,
   save_extracted_objects=True,
   show_bboxes=True,
   output_image_name="output.jpg")


We called the same function segmentImage used for coco model detection.


Full Code for Object Extraction with A Custom Model


Sample image:



Source: By Peter Trimming on Wikicommons (CCO)



Output:

Figure
Extracted Object from the image





Object Extraction in Videos Using A Custom Model Trained with PixelLib


Sample video:


Full Code for Object Extraction in Videos Using A Custom Model.




Output:


Extracted Objects:




Full Code for Object Extraction in Camera Feeds Using A Custom Model

Read this article to learn how to train a custom model with PixelLib:

Custom Instance Segmentation Training With 7 Lines Of Code.


Reach to me via:


Check out these articles written on how to make use of PixelLib for semantic segmentation, instance segmentation and background editing in images and videos.


Bio: Ayoola Olafenwa is an independent AI Researcher who specializes in the field of computer vision.
